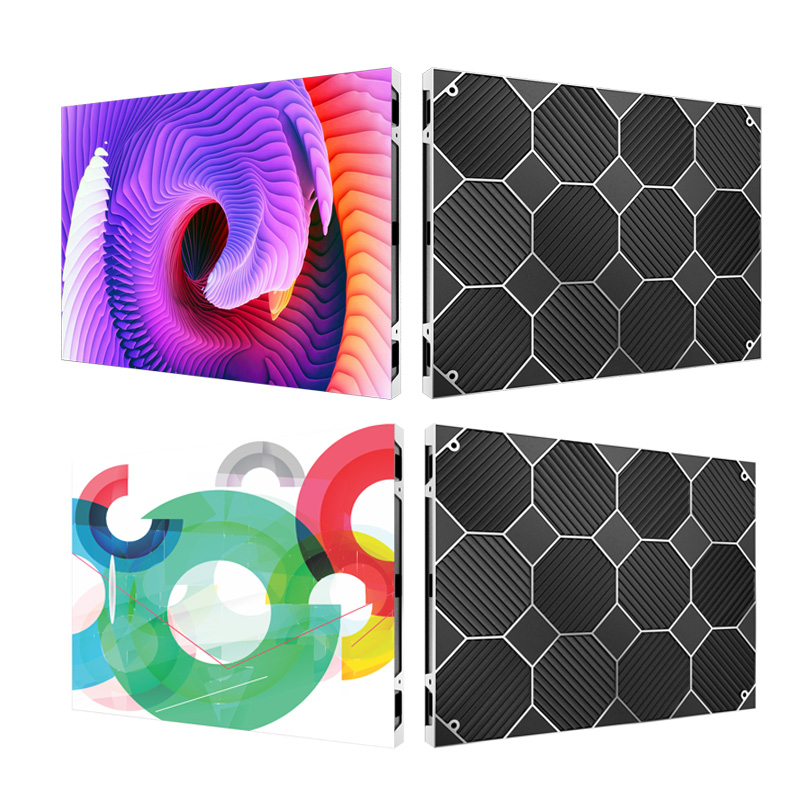

ZSK Series Small Spacing LED Displays
Main Features
√ Integrated power and signal ports Power redundency Transforming/Thin/Smart/Cost-benefit
√ Pixels suitable: 1.25 1.53 1.86 2.5
√ Module suitable: 320x160mm
√ Cabinet size: 640x480x48mm
PRODUCT DETAILS

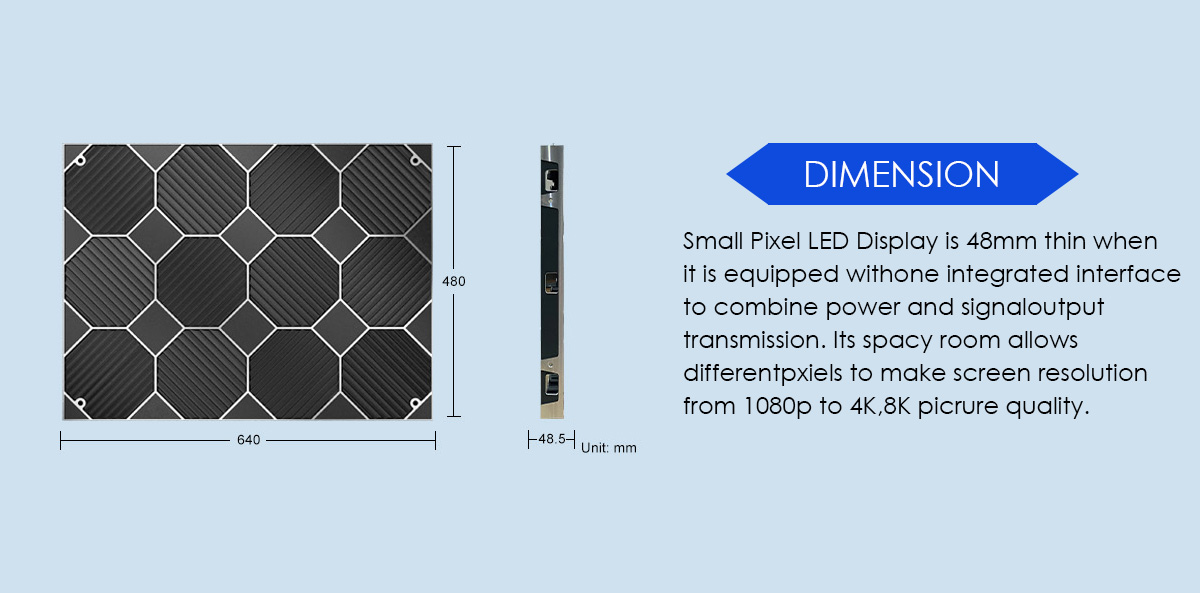

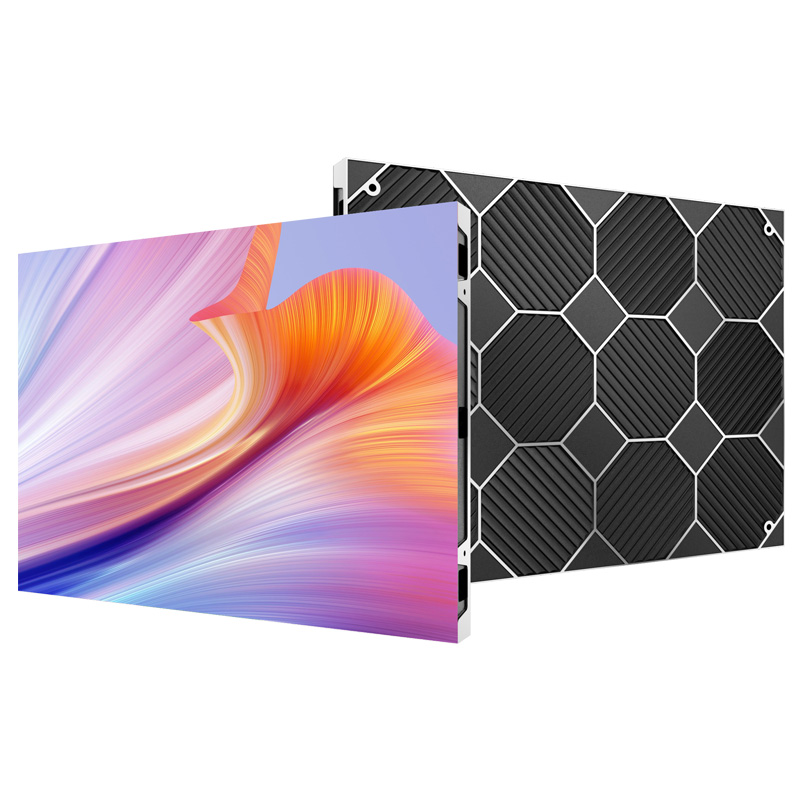

Small Pixel LED Display
48mm thin when it is equipped withone integrated interface to combine power and signaloutput transmission. Its spacy room allows differentpxiels to make screen resolution from 1080p to 4K,8K picrure quality.
ZSK Series Small Spacing LED Displays
Application scenarios: conference rooms, studios, monitoring rooms,podiums, etc.

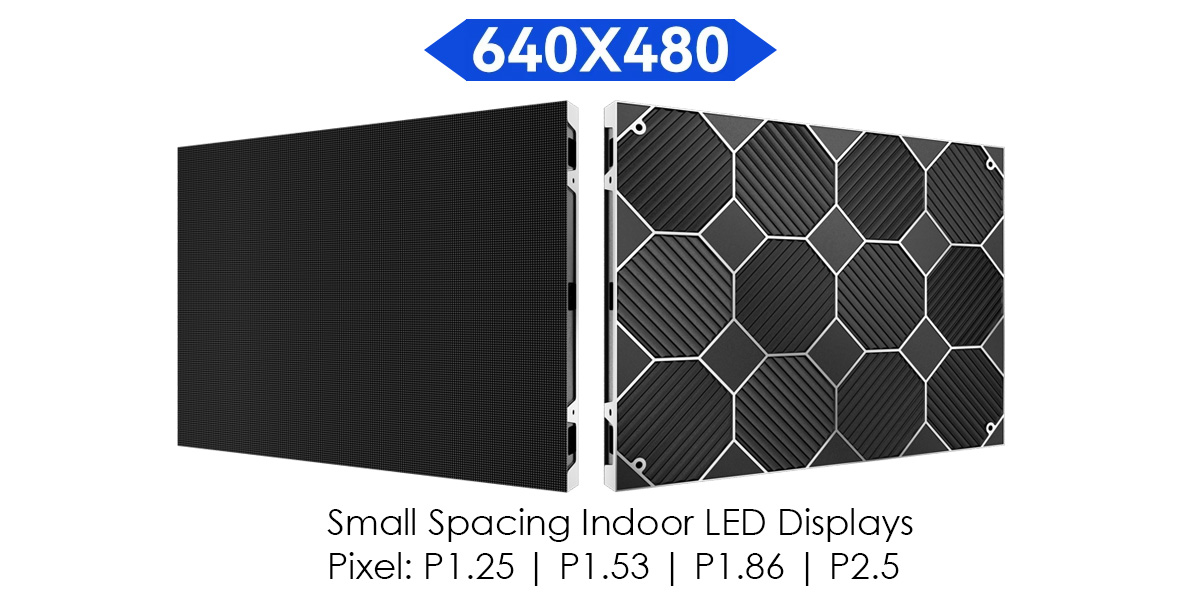

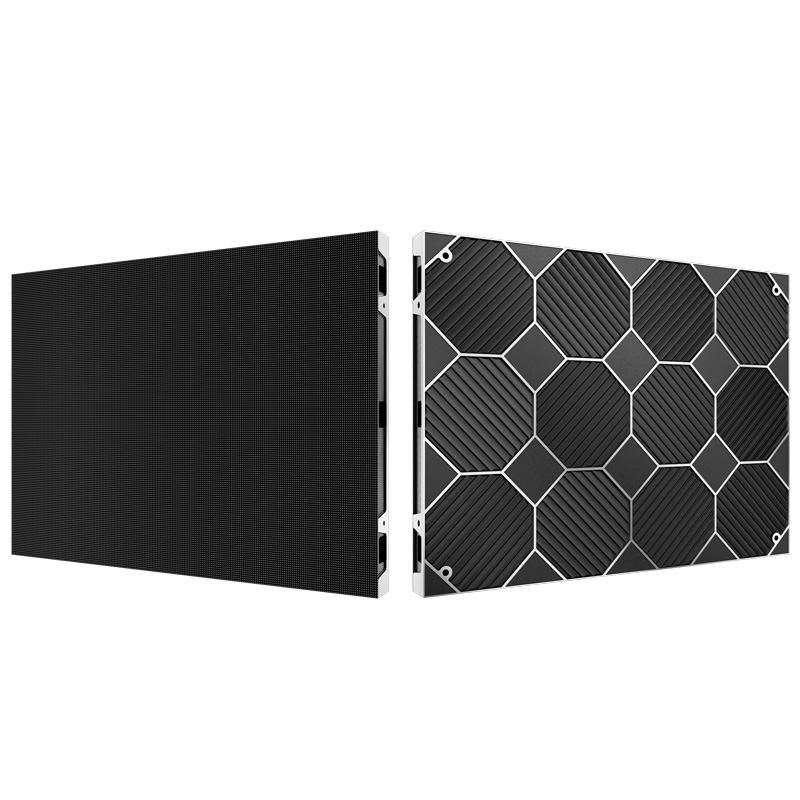

640x480mm Cabinet
P1.25/P1.538/P1.86/P2.5
Small Pixel LED Display Main Features:
1. High-definition display, large viewing angle.
2. Ultra-high resolution display, suitable for indoor close viewing
3. Lightweight 4.5cm thickness,7.2kg lighter, seamless splicing, easy to install and disassemble
4. Diversified installation, fixed to the wall, truss hoisting, standing installation
5. Modular wireless design, modular magnet front maintenance design, quick disassembly and easy maintenance
6. Good heat dissipation effect, quiet and no noise.

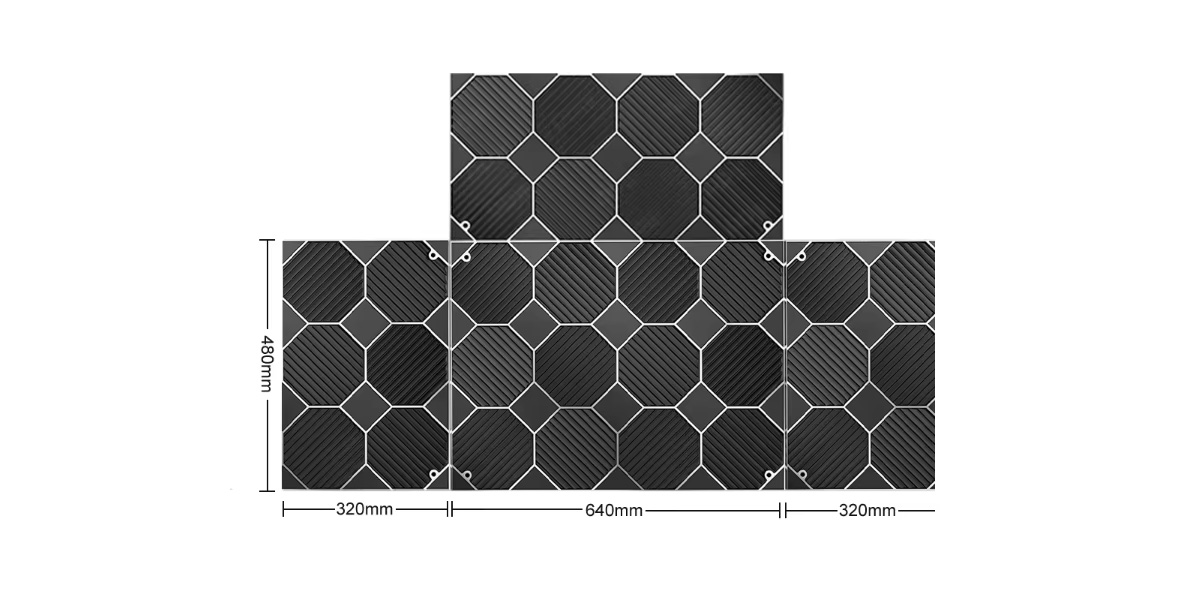

FLEXIBLE CABINET SPLICING
To suit various sizes of the led screen,Is changeable to makedifferent shapes and sizes,functioning the right roles.

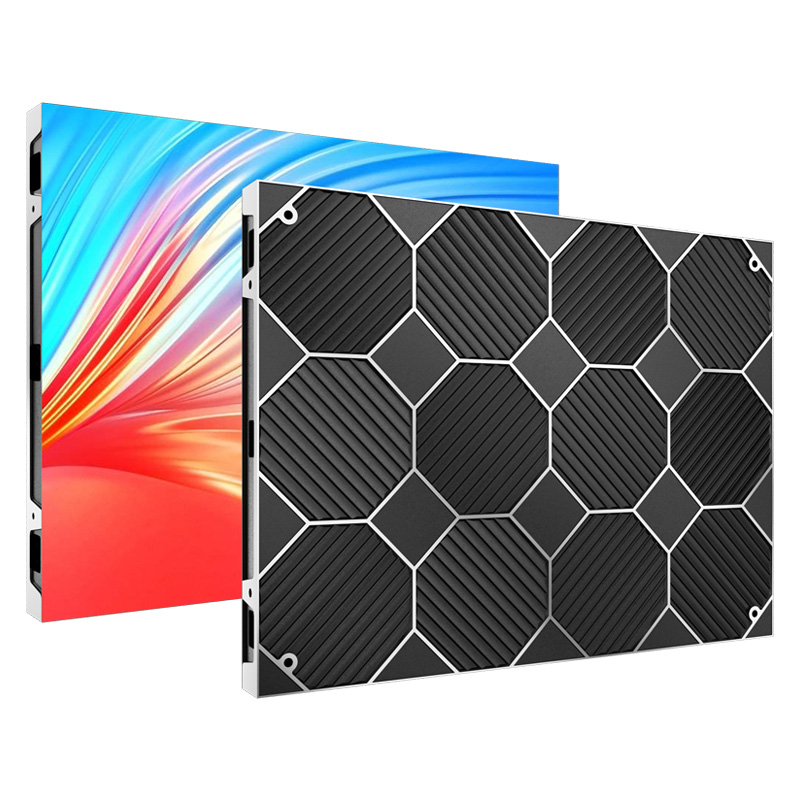

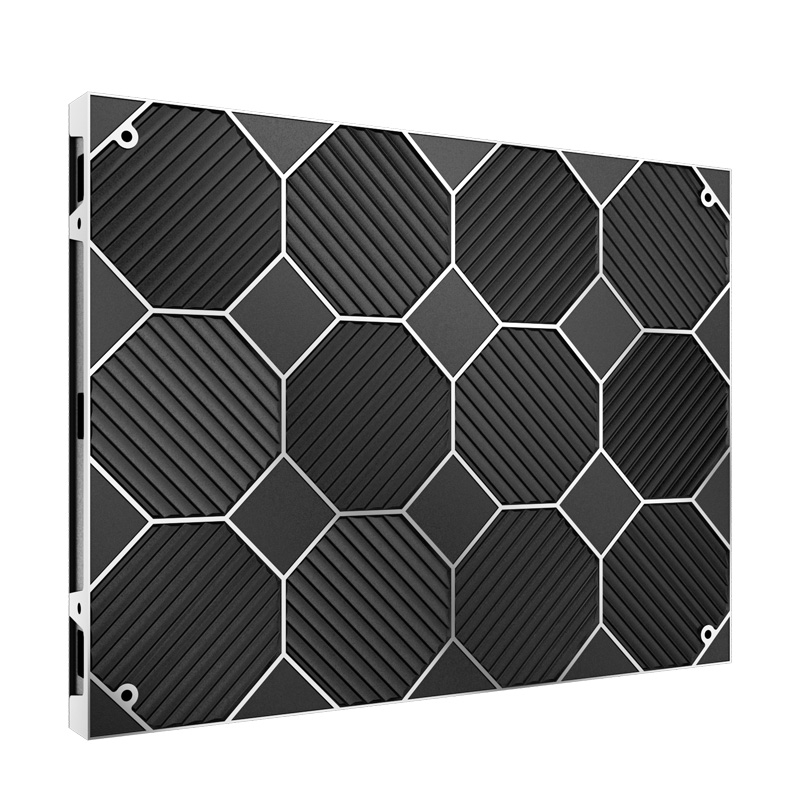

Aluminum Cabinet
Integrated aluminum cabinet is for long last using and easy installation,provide convenience for multi-installation applications and higheffeciency of heat dissipation.

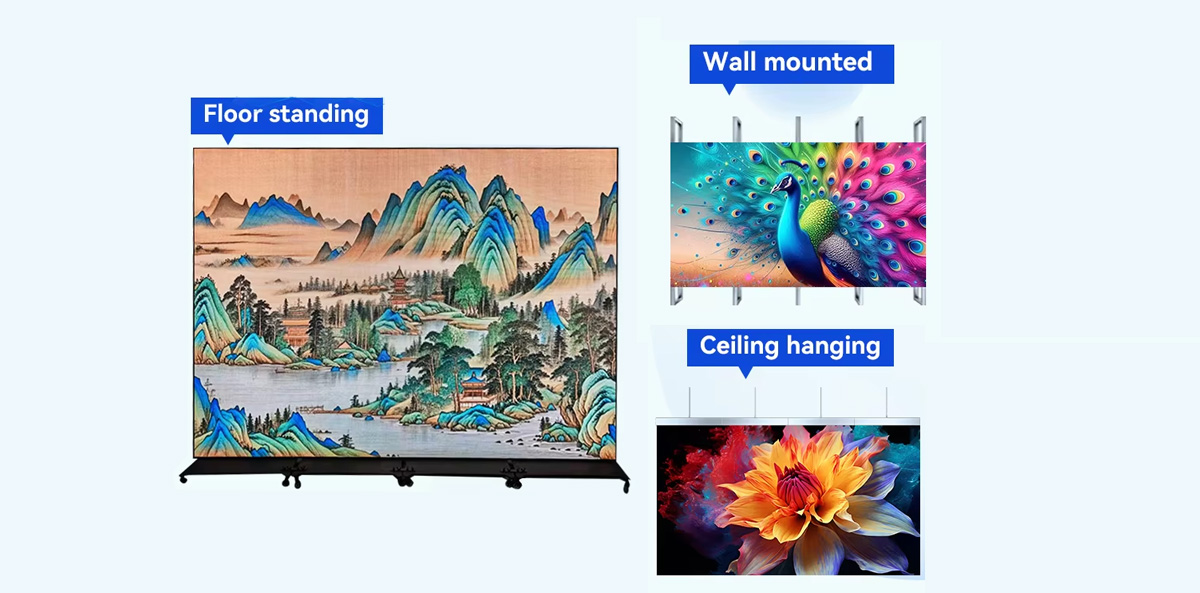

Installation Method
Installation way: Floor Standing, Wall Mounted, Ceiling Hanging.
SPECIFICATIONS
| Specifications | ||||
| Part Number | P1.25 | P1.53 | P1.86 | P2.5 |
| Pixel Pitch | 1.25mm | 1.53mm | 1.86mm | 2.5mm |
| Physical Parameters | ||||
| Size(Wide×High x Side) | 640*480*32mm | 640*480*32mm | 640*480*32mm | 640*480*32mm |
| Cabinet Resolution(Wide×High) | 512*384 | 416*312 | 344*258 | 256*192 |
| Scanning Mode | 1/64 | 1/52 | 1/43 | 1/32 |
| Horizontal/Vertical | ≤120°/120° | ≤120°/120° | ≤120°/120° | ≤120°/120° |
| Cabinet Weight | 7.5Kg/PCS | 7.5Kg/PCS | 7.5Kg/PCS | 7.5Kg/PCS |
| Input Signal Interface | RJ45 | RJ45 | RJ45 | RJ45 |
| Power signal interface | U-type terminal | U-type terminal | U-type terminal | U-type terminal |
| IP Rating | IP30 | IP30 | IP30 | IP30 |
| Optical Parameters | ||||
| Brightness | ≥400cd | ≥400cd | ≥400cd | ≥400cd |
| Grayscale Level | ≥13bit | ≥13bit | ≥13bit | ≥13bit |
| Color Temperature | 6500K～8500K | 6500K～8500K | 6500K～8500K | 6500K～8500K |
| Contrast Ratio | ≥4000:1 | ≥4000:1 | ≥4000:1 | ≥4000:1 |
| Brightness Adjustment | Manual/Automatic/Remote | Manual/Automatic/Remote | Manual/Automatic/Remote | Manual/Automatic/Remote |
| Electrical Parameters | ||||
| Working Voltage | AC：110V~220V | AC：110V~220V | AC：110V~220V | AC：110V~220V |
| Max Power | ≤120W/ PCS | ≤110W/ PCS | ≤105W/PCS | ≤90W/PCS |
| Average Power | 50-80W/PCS | 30-45W/PCS | 25-45W/PCS | 20-40W/PCS |
| Performance Parameters | ||||
| Refresh Rate | ≥960-1920Hz | ≥960-1920Hz | ≥960-1920Hz | ≥960-1920Hz |
| Frame Rate | 60Frames | 60Frames | 60Frames | 60Frames |
| Color Correction | quipped with point-by-point correction of brightness and chroma | quipped with point-by-point correction of brightness and chroma | quipped with point-by-point correction of brightness and chroma | quipped with point-by-point correction of brightness and chroma |
| Whole Screen loss of control point | ≤0.003%，is set to 0 when shipped from the factory | ≤0.003%，is set to 0 when shipped from the factory | ≤0.003%，is set to 0 when shipped from the factory | ≤0.003%，is set to 0 when shipped from the factory |
| Regional loss of control point | ≤0.009% | ≤0.009% | ≤0.009% | ≤0.009% |
| Screen Temperature Rise(Running State) | ≤5°C | ≤5°C | ≤5°C | ≤5°C |
| Compatible module to store data | Compatible module to store data | Compatible module to store data | Compatible module to store data | Compatible module to store data |
| Support electromagnetic compatibility | Support electromagnetic compatibility | Support electromagnetic compatibility | Support electromagnetic compatibility | Support electromagnetic compatibility |
| Support Redundancy Signal | Support Redundancy Signal | Support Redundancy Signal | Support Redundancy Signal | Support Redundancy Signal |
| Support Redundancy Power | Support Redundancy Power | Support Redundancy Power | Support Redundancy Power | Support Redundancy Power |
| Flatness | ≥98% | ≥98% | ≥98% | ≥98% |
| High voltage safety protection | leakage automatic protection | leakage automatic protection | leakage automatic protection | leakage automatic protection |
| Application Scenario | ||||
| Working Temperature | -10℃～60℃ | -10℃～60℃ | -10℃～60℃ | -10℃～60℃ |
| Working Humidity | 35％～75％RH，no condensation | 35％～75％RH，no condensation | 35％～75％RH，no condensation | 35％～75％RH，no condensation |
| Application | Indoor | Indoor | Indoor | Indoor |

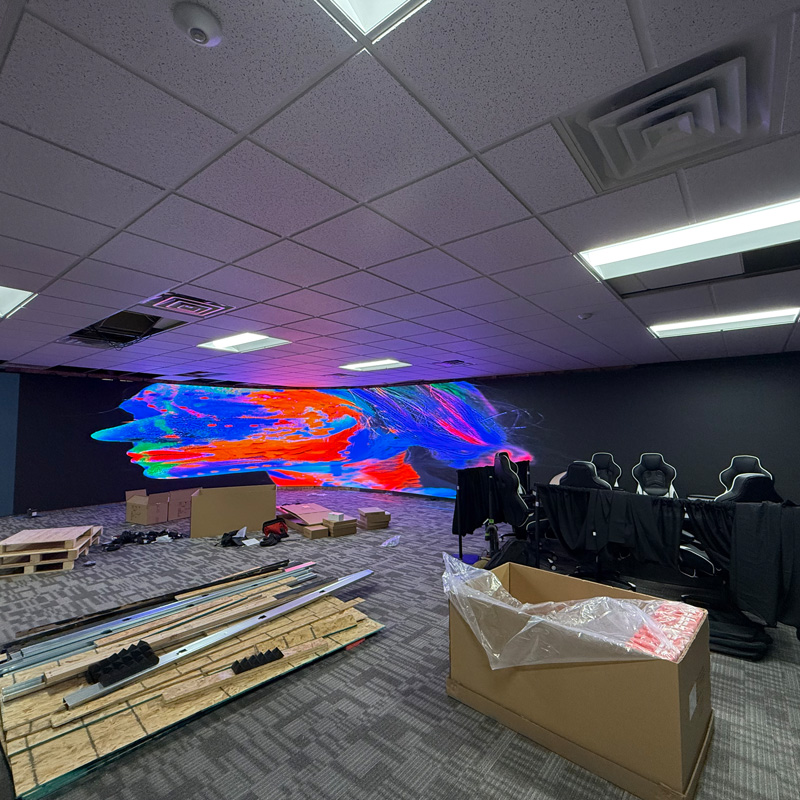

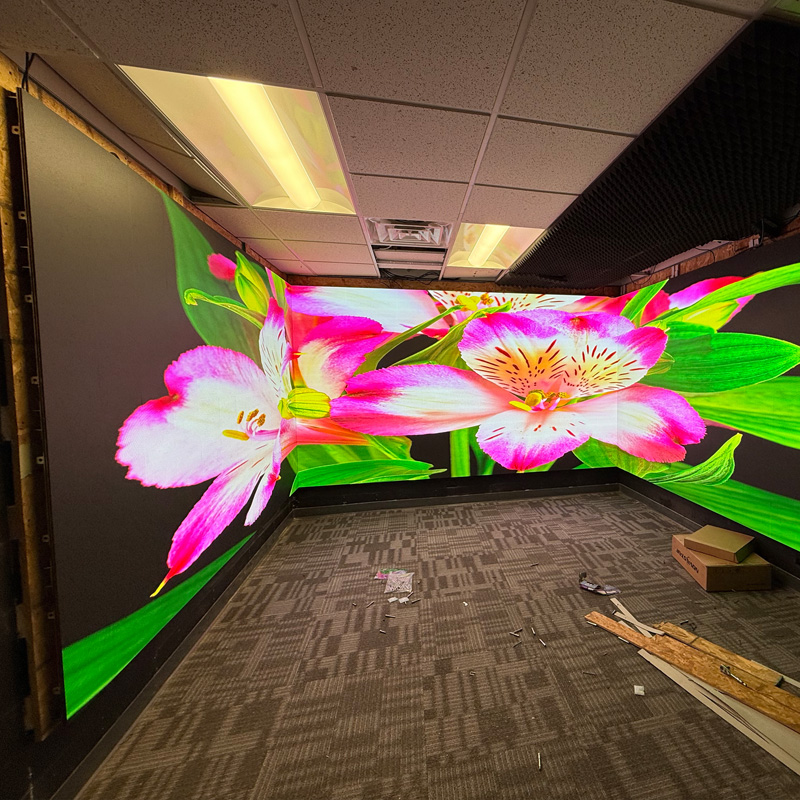

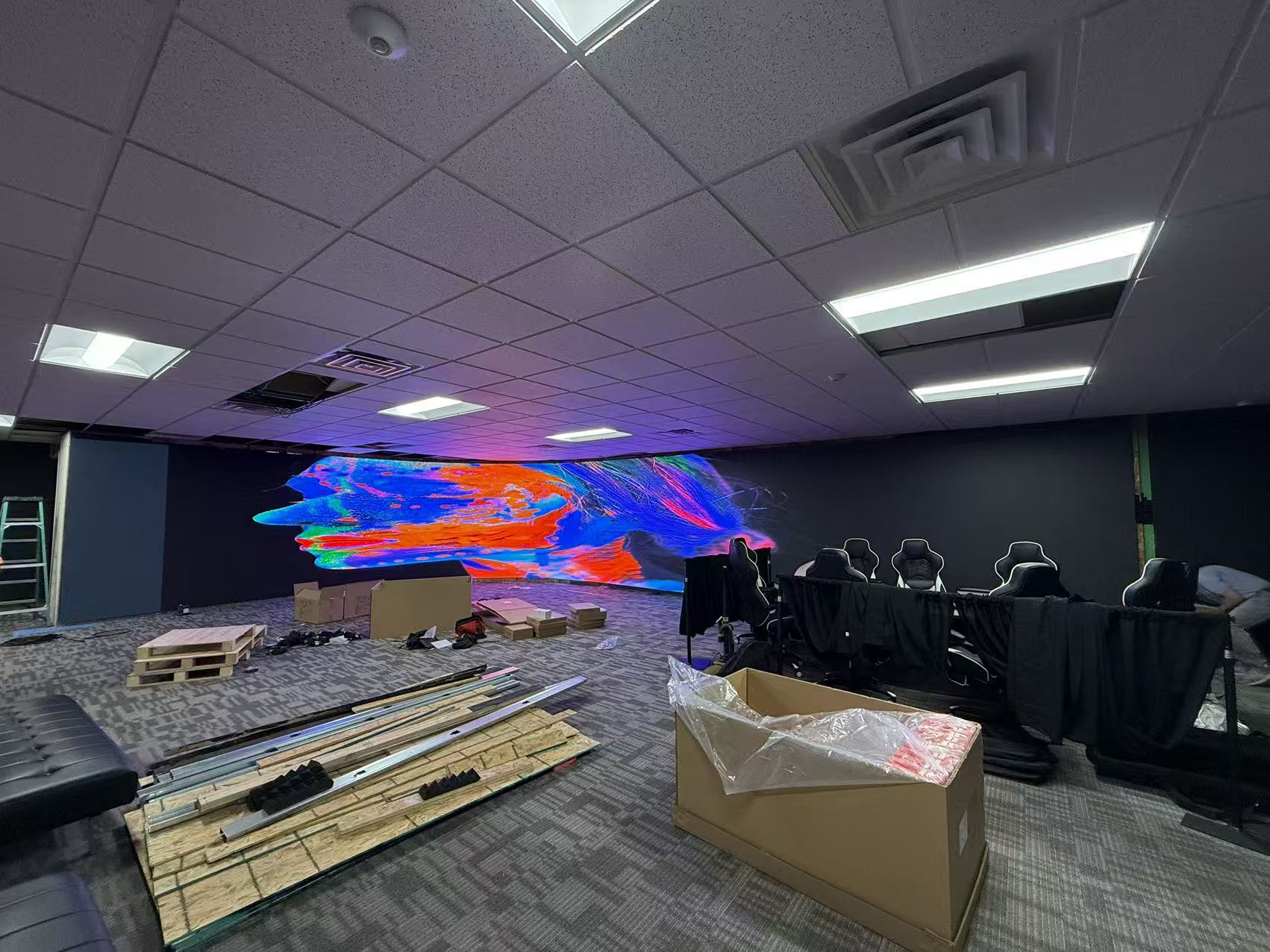

APPLICATION
